Auto-Provisioning Yealink IP Phones with RingQ
Introduction
Auto-provisioning Yealink IP phones with RingQ ensures a smooth and efficient deployment process, allowing devices to be configured automatically without manual setup. This saves time, reduces errors, and simplifies large-scale installations. By linking your Yealink phones directly to the RingQ provisioning server, all settings—such as SIP accounts, extensions, and network configurations—are applied automatically once the phones are connected to the network.
In this guide, we’ll walk you through the complete process of auto-provisioning Yealink IP phones with RingQ, including prerequisites, configuration steps, and troubleshooting tips to help you get your devices up and running quickly and reliably.
Prerequisites
- Your Yealink IP Phone and computer are on the same local network.
- You have access to the RingQ Web App.
- You know or can access your phone’s IP address and MAC address.
Access the Yealink Web Interface
On your computer, open a web browser.
1. In the address bar, type your phone’s IP address. Example: http://192.168.100.xxx.
2. Enter your login credentials:
Username: admin
Password: admin (default if unchanged)
Get the MAC Address of Your Yealink Phone
1. Once logged in, locate and copy the MAC Address from the web interface.
2. Alternatively, check the sticker on the back or bottom of the phone.
3. The MAC Address is typically a 12-digit alphanumeric string (e.g., 001565A1B2C3).

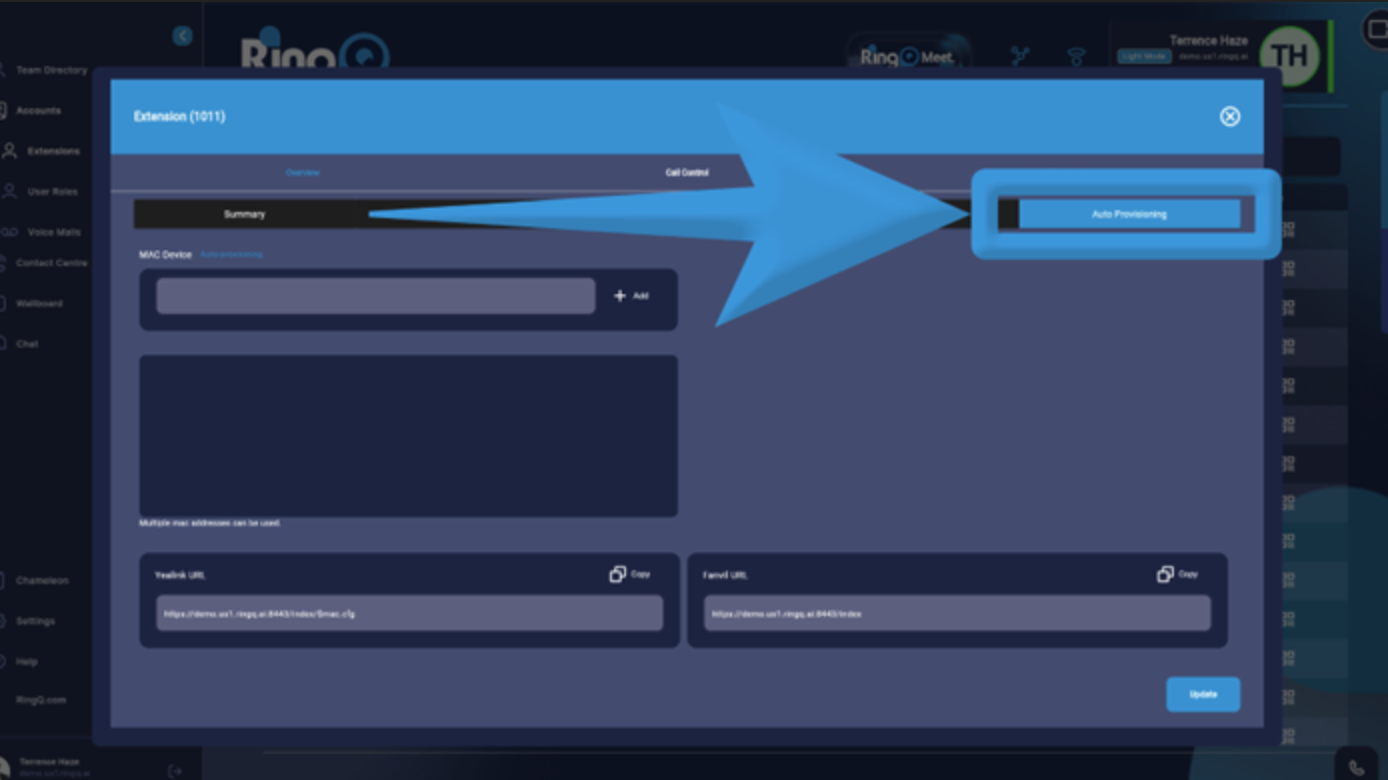

Assign the IP Phone to an Extension
1. Login to your RingQ web app and go to “Accounts”.
2. Select the extension you want to provision the IP phone for.
3. Open Overview.
4. Choose Auto-Provision for that extension.
Add the Yealink Device in RingQ Auto Provision
1. Open the Auto-Provision Page in the RingQ web application.
2. In the MAC Address field, paste or type the copied MAC address.
3. Click Add to register the device.
4. Select the appropriate:
a. Phone Time Zone
b. STUN Server (for NAT traversal)
5. Click Update to save the configuration.
6. A Yealink Auto-Provisioning URL will be generated automatically.
Copy the RingQ Provisioning URL
1. Locate the Yealink device entry you just created.
2. Click the Copy button next to the Server URL to copy it.
3. Keep this URL handy — it will be used in your Yealink phone’s configuration.
Configure the Yealink Phone for Auto Provisioning
1. Go back to your Yealink Web Interface.
2. Navigate to Settings → Auto Provision.
3. In the Server URL field, paste the copied RingQ Provisioning URL.
4. Click Confirm or Update to save the setting.
5. Click Auto Provision Now or wait for the phone to auto-reboot.
a. The phone will contact the RingQ provisioning server and download its configuration.
b.The device may reboot automatically after provisioning.
Verify Successful Registration
1. Return to your RingQ Web App → Device Management.
2. Check that the Yealink device status shows Online or Registered.
3. Perform a test call to verify inbound and outbound audio.
4. If registration fails:
a. Re-check the MAC Address.
b. Verify that the Server URL is correct.
c. Ensure network connectivity is stable.
Once provisioning completes:
1. The Yealink IP Phone automatically downloads its assigned configuration.
2. The extension is now mapped and registered with RingQ.
3. Your phone is ready for immediate use.
Tips & Reminders
- Do not unplug or reboot the phone during provisioning.
- Ensure correct MAC Address entry in the RingQ system.
- If provisioning fails:
- Verify your network connection.
- Ensure the Server URL is not blocked by firewalls.
- Check that the RingQ server settings correspond to your region/timezone.
- Always use the latest RingQ provisioning URL when reconfiguring or resetting the phone.
Summary Flow
| Step | Action | Location |
|---|---|---|
| 1 | Get IP & login credentials | Yealink phone |
| 2 | Retrieve MAC address | Yealink Web UI / Device label |
| 3 | Assign to extension | RingQ Web App |
| 4 | Add MAC & select Time Zone, STUN | RingQ Auto-Provision Page |
| 5 | Copy provisioning URL | RingQ Auto-Provision Page |
| 6 | Paste URL in Server URL field | Yealink Web UI |
| 7 | Click Update / Auto Provision | Yealink Web UI |
| 8 | Verify registration | RingQ Web App |
| 9 | Row 8, Col 2 | Row 8, Col 3 |
